Wired J1939/J1708 Vehicle Communication Interface
Cummins INSITE, Calterm, JPRO, DDDL, ServiceMaxx, DAVIE, Cojali Jaltest, Noregon

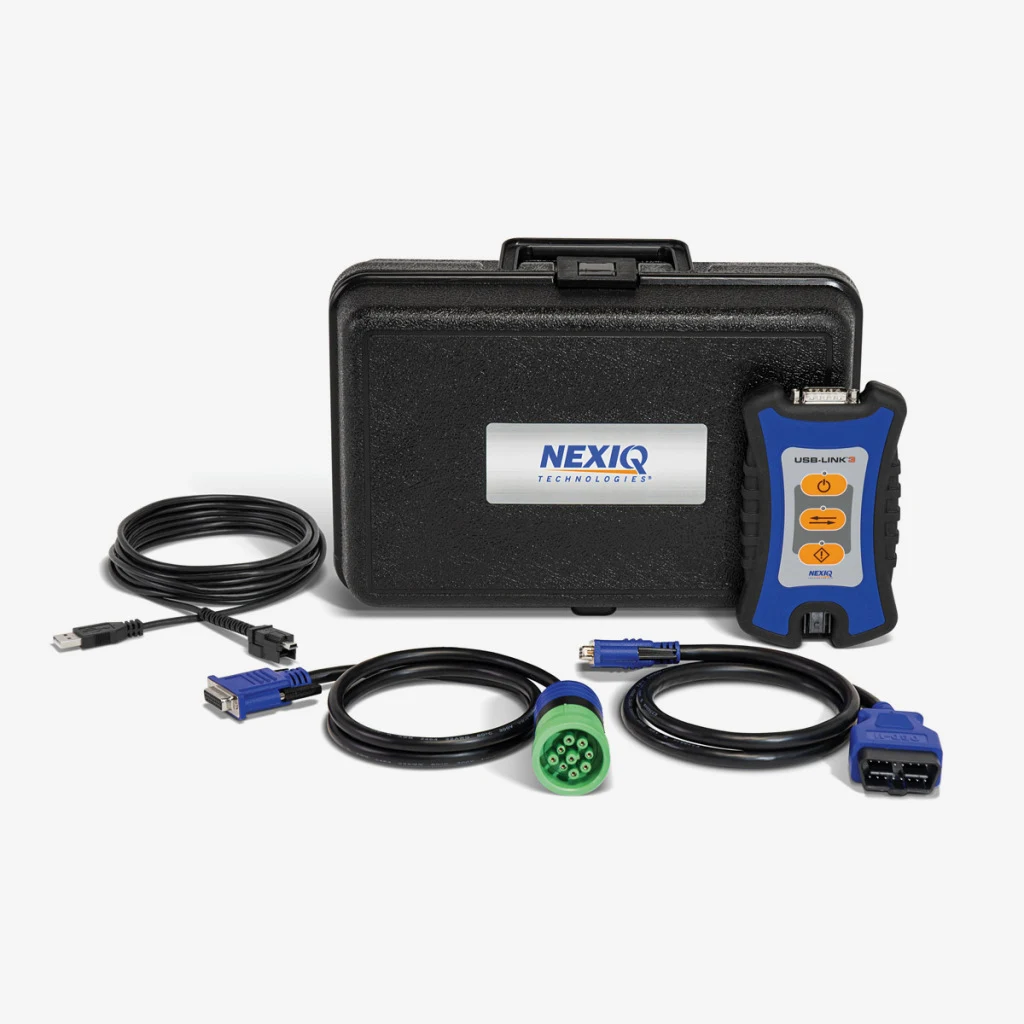

The Nexiq USB-Link 3 is the industry-standard communication interface used by dealerships and professional diagnostic shops worldwide. It acts as the bridge between your truck's ECM and your diagnostic software, translating J1939 and J1708 data protocols into information your computer can read. The wired USB connection ensures maximum reliability during critical diagnostic sessions and ECM programming.
| Brand | Nexiq Technologies |
| Model | USB-Link 3 Wired (121054) |
| Protocols | J1939, J1708/J1587, CAN, ISO 15765, ISO 14229 |
| PC Connection | USB 2.0 Type-B |
| Vehicle Connector | 9-Pin Deutsch HD, 6-Pin Deutsch |
| LED Indicators | 4 (Power, Vehicle, PC, Activity) |
| Firmware | Field-upgradeable via USB |
| Housing | Ruggedized plastic |
| Operating Temp | −40°C to +85°C |
| Certification | FCC, CE, IC |
| Cable Length | 6ft USB cable included |
| Warranty | 1 year manufacturer |
